Technical Data

An easy-to-operate, compact design with semi-automatic control. Low investment leads to cost savings.

Highly productive moulding device, which consists of 360 degree rotating and compulsory feeding of raw materials, platform vibrating, and compression shaping, greatly improves the cycle time.

Our machines, with harmonic cooperation between mechanical, electrical and hydraulic machines functions, guarantees a reliable and high production output of concrete products.

The moulds are changeable, and it is able to produce various kind of blocks, bricks, interlocks, pavers and kerbstones in different types, sizes, shapes, and color layers.

With face mix device, its able to produce pavers with color layer.

The finished blocks are of good shape and high quality.

Technical Specification

Cycle Time (s) Pallet Size (mm) Power (Kw) Machine Specification (mm)
20-25 700 x 540 x 20 21 5100 x 4600 x 2550
Machine Model Specifications Labour Land / Sq.ft Current Generator Water Shed Size
MULTI CI 500 - Semi Automatic Pan Mix With Hopper, Belt Conveyor, Main Machine, Green Brick Conveyor 12 50 C / 21,780sq.ft Pan Mix With, Hopper-23HP, Belt Con– 3 HP, Main Mac - 28HP, Colour Mixer-7.5HP, Total – 62 HP 130 KVA 10,000 To 15,000 Litres/Day Length – 60 Feet, Width – 41 Feet, Height – 23 (A type shed)

PRODUCTION CAPACITY

Type Specification (mm) No./pallet Block/hour Block/8hours
Concrete Block 20 Sec
400 x 200 x 200 3 540 4320
400 x 150 x 200 4 720 5760
400 x 100 x 200 6 1080 8640
I-Shape Paver 25 Sec 200 x 160 x 60 9 1296 10368
Curve Paver 25 Sec 225 x 112.5 x 80 10 1440 11520
Brick 20 Sec 230 x 110 x 75 14 2520 20160

* The production capacity data are theoretical and are dependent on machine settings, labors, machine operator, mix design, aggregates used and other environmental conditions.

MULTI DESIGN PRODUCTS FROM OUR BLOCK MACHINE

Multi Design Products

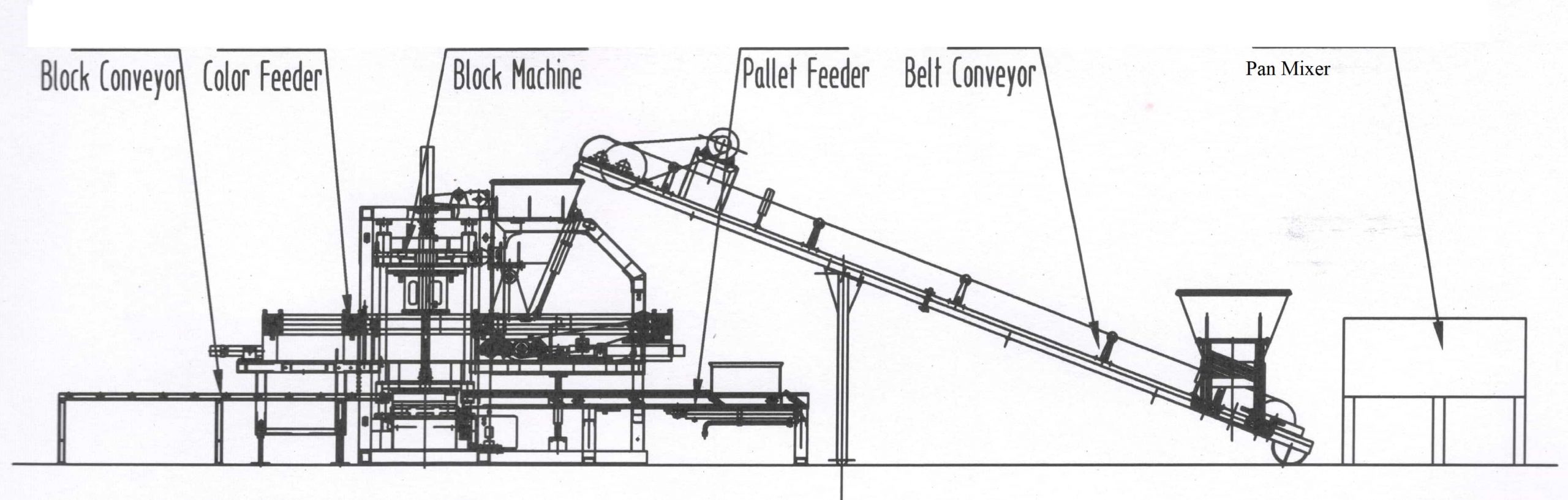

LAYOUT

Semi-Automatic Block Machine
