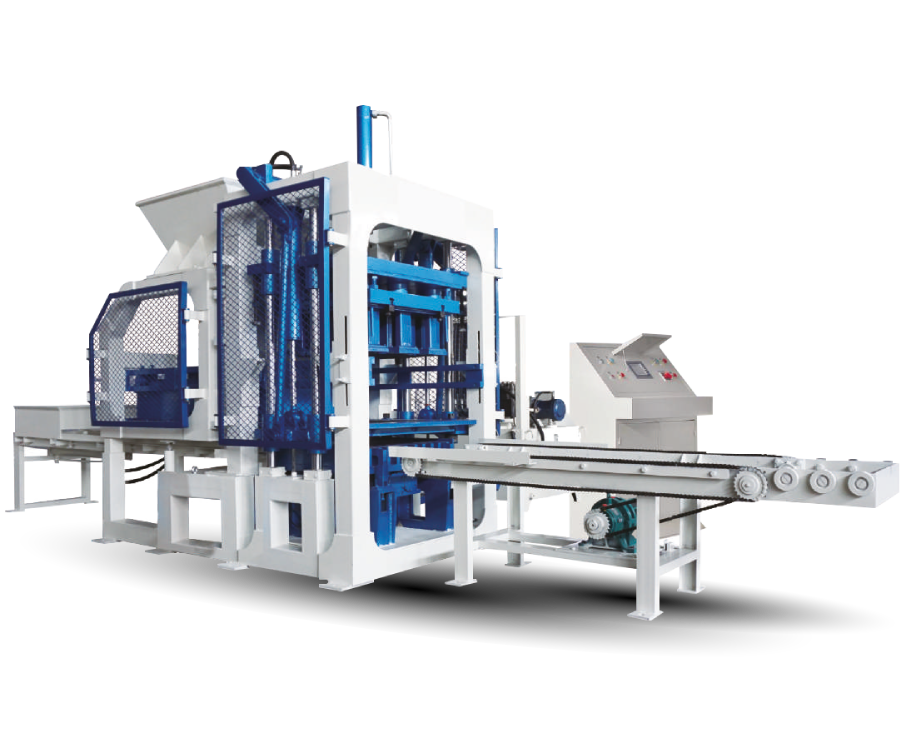

Technical Data

Electrical system consists of Delta PLC control system and Delta Touch Screen, with data input and output; control system has safety logic control and trouble-shooting functions.

Hydraulic System: uses double high-dynamic proportional valves, which automatically adjust the oil flow and pressure, to guarantee the precise movement between the tamper head and mould.

Heavy duty machine structure, which is made of high density cast steel, is vibration proof. Four rods guiding system and long guide bushing assure the precise movement between the tamper head and the mould.

Highly productive moulding device, which consists 360 rotating and compulsory feeding of raw materials, platform vibrating and compression shaping, greatly improves the cycle time.

Our machines, with harmonic cooperation between mechanical, electrical and hydraulic machines functions, guarantees a reliable and high production output of concrete products.

The finished blocks are of good shape and high quality.

Technical Specification

Cycle Time (s) Pallet Size (mm) Power (Kw) Machine Specification (mm)
18-20 700 x 540 x 20 26 5100 x 4600 x 2550
Machine Model Specifications Labour Land / Sq.ft Current Generator Water Shed Size
MULTI CI 1000 Automatic Type A Batching, Compulsory Mix, Belt Conveyor, Main Machine, Auto Green Brick Conveyor, Stacker 8 1 Acre/43,560sq.ft Batching – 24 Hp, Comp Mix- 33.5Hp, Belt Con– 3 HP, Main Mac – 36 HP, Stacker – 5 HP, Colour Mix - 7.5HP, Total- 109 HP 250 KVA 15,000 To 20,000 Litres/Day Length – 100 Feet, Width – 60 Feet, Height – 23 Feet (A type shed)
MULTI CI 1000 Automatic Type B Pan Mixture with Hopper, Belt Conveyor, Auto Main Machine, Auto Green Brick Conveyor 12 1 Acre/43,560sq.ft Pan Mix With Hopper – 23 Hp, Belt Con– 3 HP, Main Mac - 36HP, Colour Mixer-7.5HP, Total - 70 HP 150 KVA 15,000 To 20,000 Litres/Day Length – 100 Feet, Width – 60 Feet, Height – 23 Feet (A type shed)

PRODUCTION CAPACITY

Type Specification (mm) No./pallet Block/hour Block/8hours
Concrete Block 18 Sec
400 x 200 x 200 3 600 4800
400 x 150 x 200 4 800 6400
400 x 100 x 200 6 1200 9600
I-Shape Paver 20 Sec 200 x 160 x 60 9 1620 12960
Curve Paver 20 Sec 225 x 112.5 x 80 10 1800 14400
Brick 18 Sec 230 x 110 x 75 14 2800 22400

* The production capacity data are theoretical and are dependent on machine settings, labors, machine operator, mix design, aggregates used and other environmental conditions.

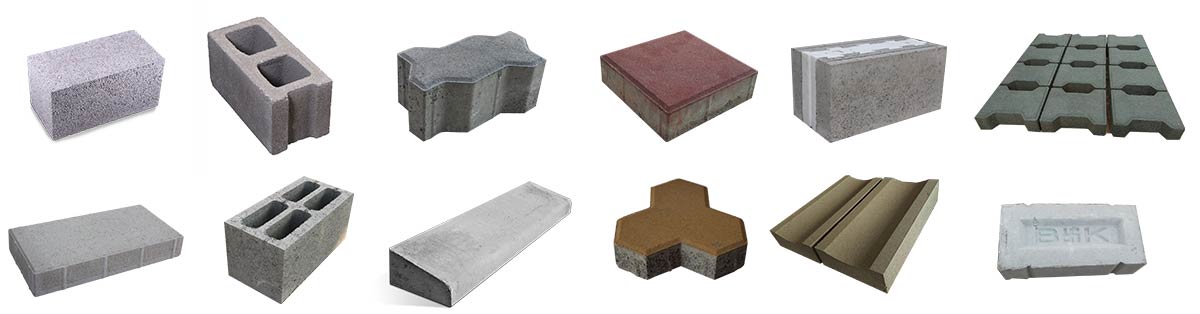

MULTI DESIGN PRODUCTS FROM OUR MACHINE

Multi-Design-Product

LAYOUT

MULTI CI 1000 Type A

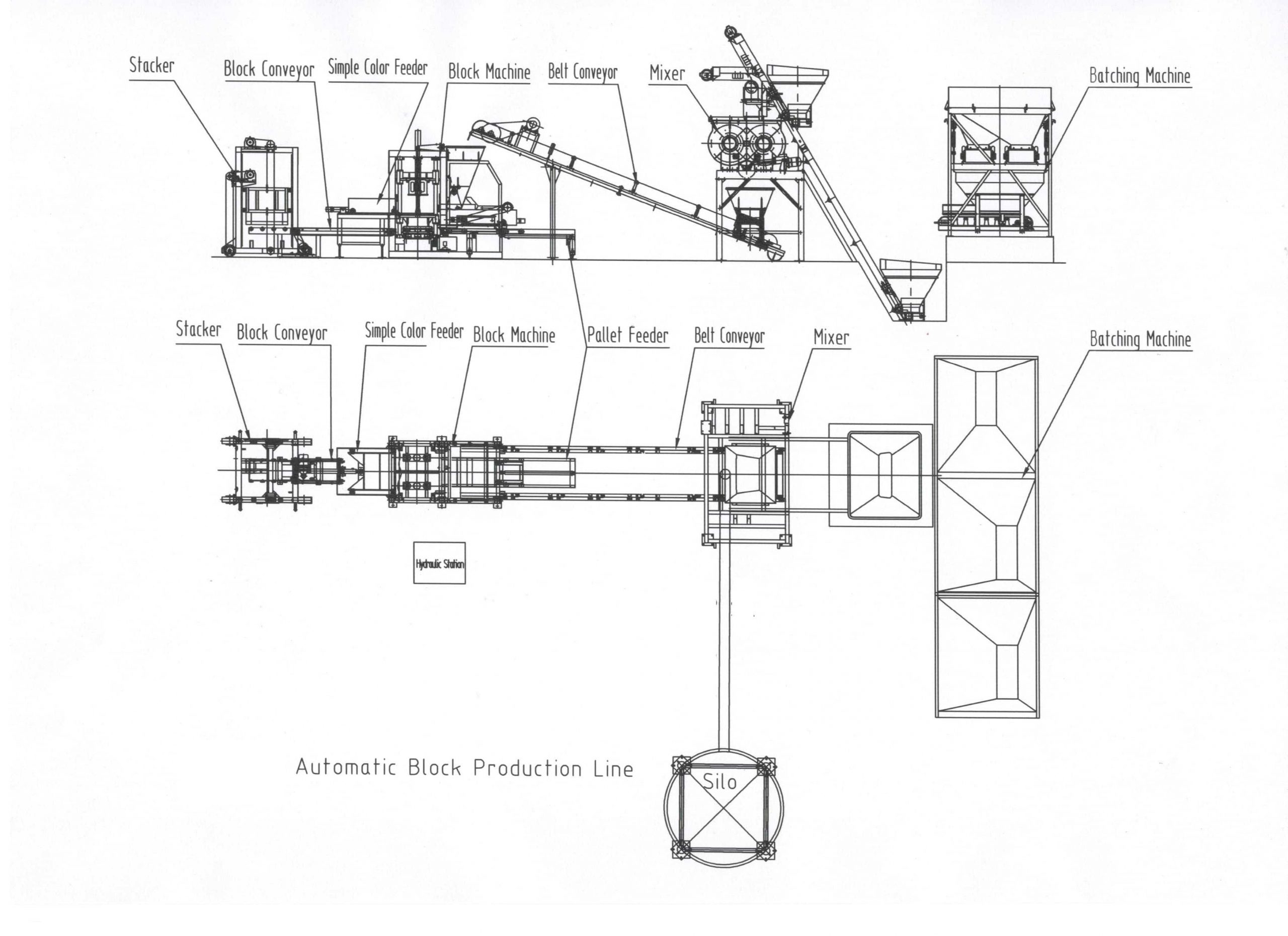

Automatic Concrete Paver Block Making Machine Layout A

MULTI CI 1000 Type B

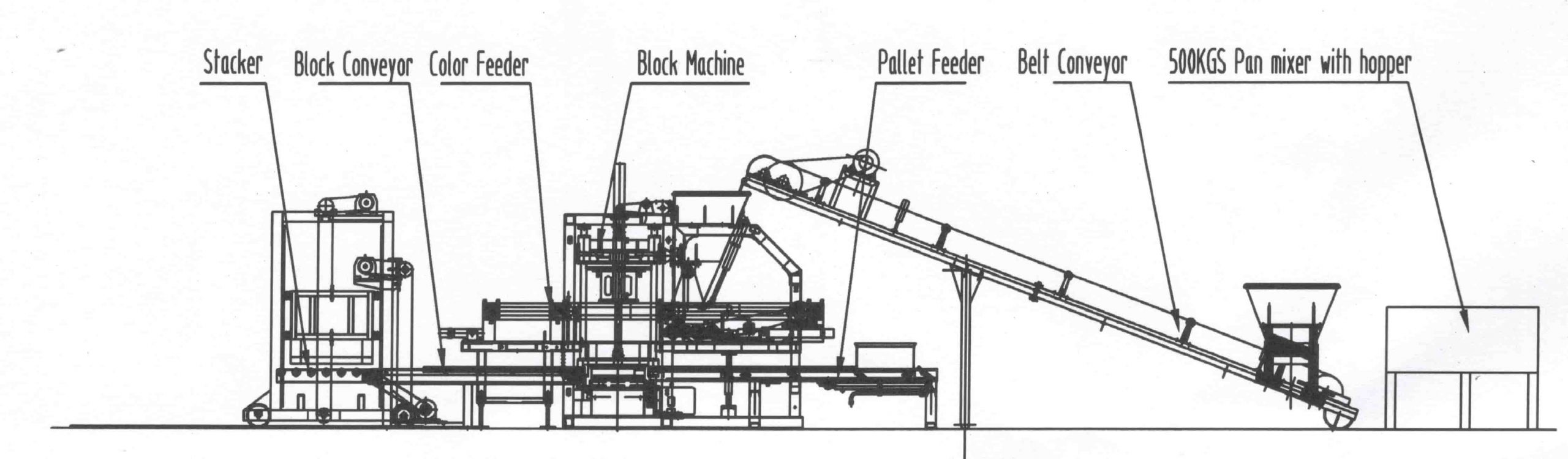

Automatic Concrete Paver Block Making Machine Layout B
