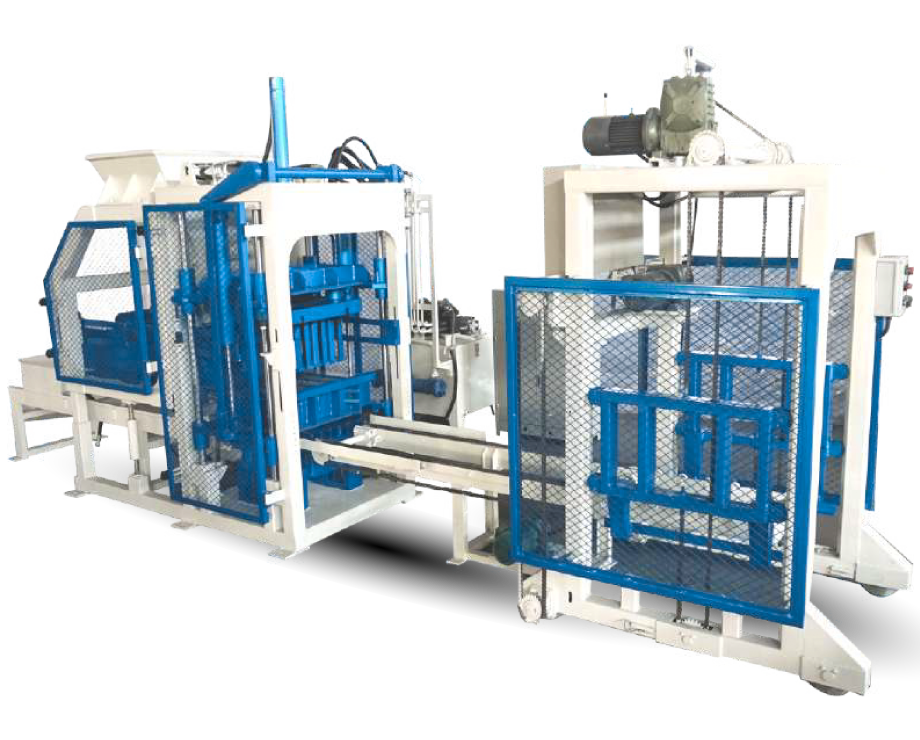

Technical Data

Uses high dynamic proportional and directional valves, which automatically adjust the oil flow and pressure as per specific working requirements to buffer the hydraulic cylinder when working; uses integrated high pressure and soft oil pipes, with easy installation.

Uses 360 multi shaft rotating and compulsory feeding, which greatly improves the density and intensity of the blocks, and reduces the feeding time as well.

Integrated structure of vibrating and moulding platforms, which reduces the weight of the machine, and improves the vibrating efficiency.

Four rods guiding system and high-precision long guide bushing are used to assure the precise movement between the tamper head and the mould.

Heavy duty machine frame which uses high density steel and advanced welding technology is vibration proof.

Technical Specification

Cycle Time (s) Pallet Size (mm) Power (Kw) Machine Specification (mm)
18-20 860 x 780 x 25 40 6750 x 2245 x 2780
Machine Model Specifications Labour Land / Sq.ft Current Generator Water Shed Size
MULTI CI 1400 Automatic Batching, Compulsory Mix, Belt Conveyor, Main Machine, Auto Green Brick Conveyor, Stacker, Cement Silo & Its Accessories 8 1.5Acre/65,340sq.ft Batching – 24 Hp, Comp Mix- 33.5Hp, Belt Con– 4 HP, Main Mac – 53 HP, Stacker – 5 HP, Colour Mix - 7.5HP, Cement Silo - 10HP Total- 138 HP 300 KVA 30,000 To 35,000 Litres/Day Length – 100 Feet, Width – 100 Feet, Height – 23 Feet (A type shed)

PRODUCTION CAPACITY

Type Specification (mm) No./pallet Block/hour Block/8hours
Concrete Block 18 Sec
400 x 200 x 200 6 1200 9600
400 x 150 x 200 8 1600 12800
400 x 100 x 200 12 2400 19200
I-Shape Paver 20 Sec 200 x 160 x 60 12 2160 17280
Curve Paver 20 Sec 225 x 112.5 x 80 18 3240 25920
Brick 18 Sec 230 x 110 x 75 27 5400 43200

* The production capacity data are theoretical and are dependent on machine settings, labors, machine operator, mix design, aggregates used and other environmental conditions.

MULTI DESIGN PRODUCTS FROM OUR MACHINE

Multi Design Product

LAYOUT

concrete block machine layout A

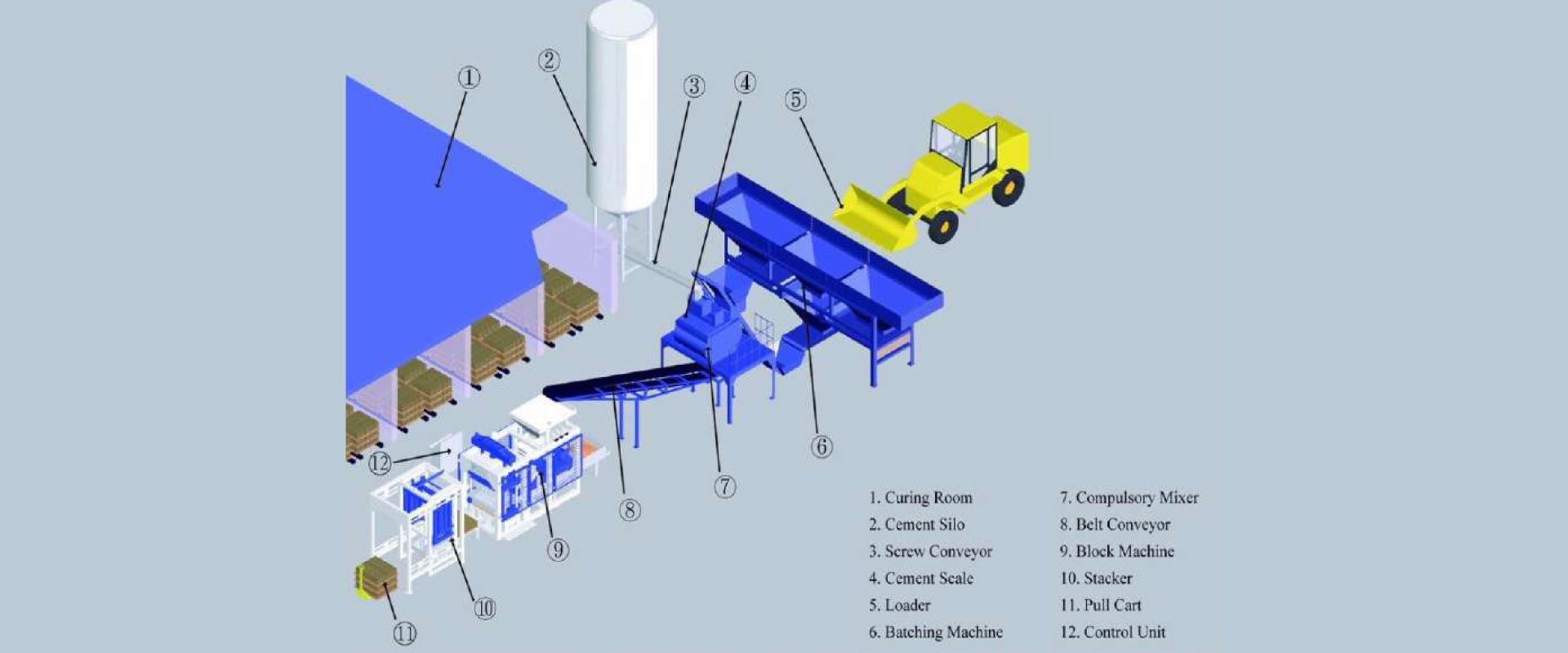

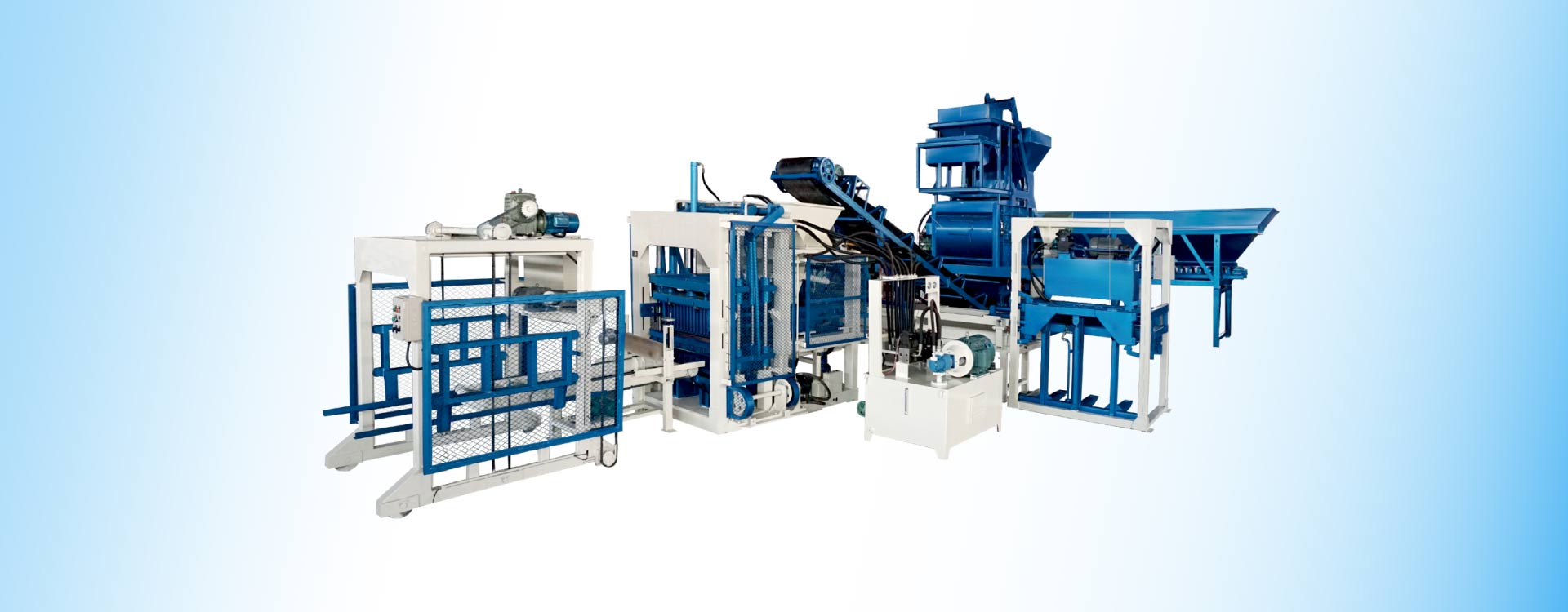

SIMPLE AUTOMATIC LINE

simple automatic line layout
