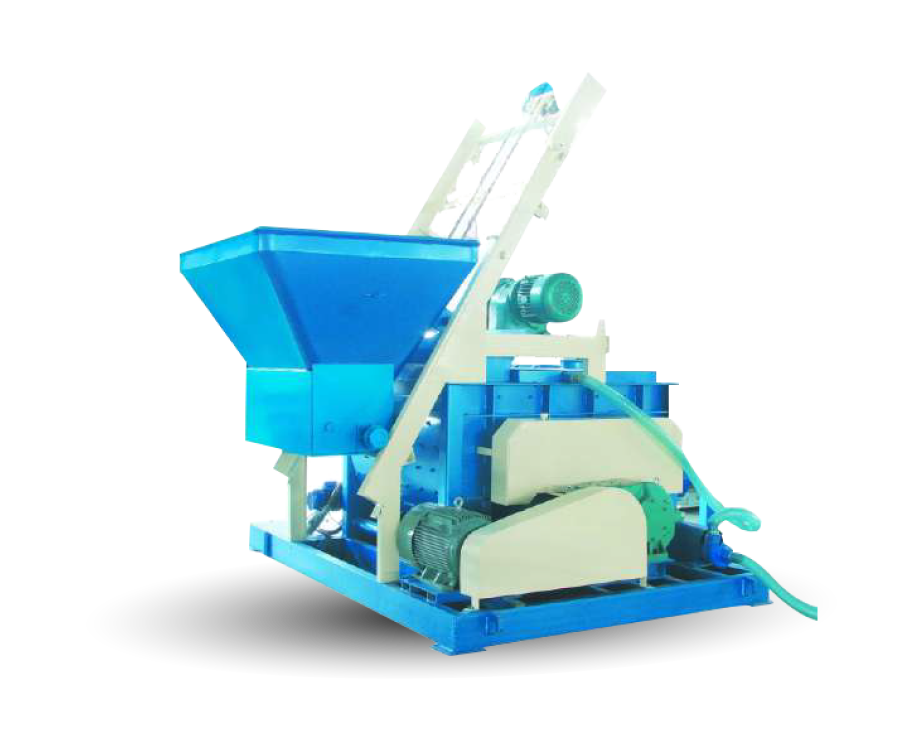

CI series mixer is twin horizontal shaft compulsory mixer. It has the advantages not only work solely but also work with batching machine as a mixing station and can be the main machine of concrete mixing station. This series of mixer not only can mix dry concrete, wet concrete, but also can mix flowable concrete light concrete and mortars. This is a highly efficient machine and is widely used by many.
Model | CI 500-2 | CI 750-2 | CI 1000-2 |
Input Capacity (Kg) | 500 | 750 | 1000 |
Productivity | ≥25m³/h | ≥37.5m³/h | ≥50m³/h |
Aggregate Max Diameter | 80/60mm | 80/60mm | 80/60mm |
Mixing Motor Power | 18.5 Kw | 30 Kw | 37 Kw |
Windless Motor Power | 5.5 Kw | 7.5 Kw | 11 Kw |
Water Pump Power | 1 Kw | 1.1 Kw | 3 Kw |
Skip Hopper Upgrade Speed | 18 m/min | 18 m/min | 21.9 m/min |
Unloading Height | 1500 mm | 1600 mm | 2700/3800 mm |
Weight (Kg) | 4000 | 7000 | 8700 |
Dimension (mm) | 3220*2400*4900 | 3870*3050*5250 | 4500*2200*3250 |
* The production capacity data are theoretical and are dependent on machine settings, labors, machine operator, mix design, aggregates used and other environmental conditions.
